Amflex Pro Flexible LED Screen

Amflex Pro LED screen

The Amflex Pro LED system is a brand-new solution for creating a fully immersive digital display experience. Utilizing the latest in LED technology, Amflex Pro LED system offers a unique and captivating way to exhibit your content.

Amflex Pro LED screen

The Amflex Pro LED system is a brand-new solution for creating a fully immersive digital display experience. Utilizing the latest in LED technology, The Amflex Pro LED system offers a unique and captivating way to exhibit your content.

Breathtaking visuals and wow-worthy design.

Designed for the most demanding environments, the AmFlex Pro is perfect for delivering a captivating experience that will wow your audience and make a striking design statement as well. Its powerful LEDs and sleek, modular design make it the ultimate in style and function. The AmFlex Pro is ideal for settings that require maximum brightness and clarity, such as television stations, museums, airports, casinos, corporate events, shopping malls, and retail environments, or any space where making a bold impression is important. Boasting a flexible, ultra-slim LED screen and an ultra-high-resolution display, the AmFlex Pro is unrivaled in terms of style and performance. With a wide color gamut and superb brightness, the AmFlex Pro will make your content look its best. And with its remote power system, you can be sure that your display will always look its best, no matter where it is located.

The Original and the Best

The most successful businesses strive for excellence in every arena. The Amflex Pro led system is the ultimate screen technology, elevating brands worldwide
and delivering that amazing moment customers expect today. This leading technology
not only supports your business at the highest level but provides your customers with a
luxurious, immersive and memorable experience, every time.

Features

The AmFlex Pro offers numerous features that make it the perfect choice for any environment:

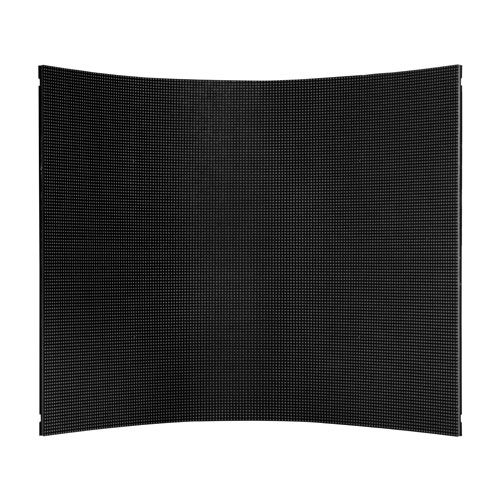

Flexible LED Design

Sleek design to meet most of the indoor applications. Nature curve, module size 400x300mm, flexible for any indoor applications.

With its sleek, modular design and incredible visual performance, the AmFlex Pro is the perfect choice for any environment that demands style, quality, and performance

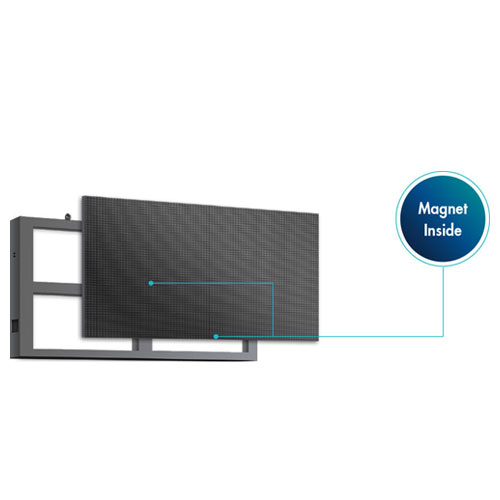

Magnets Installation

slim and lightweight magnetic module can stick to customized frame and fit to any construction design for easy maintain. It needs very little space for wire and mounting.

Low failure rate With the highest quality LEDs in the industry, the AmFlex Pro has an incredibly low failure rate. This is important because it means that you can rely on your display to look its best for years to come.

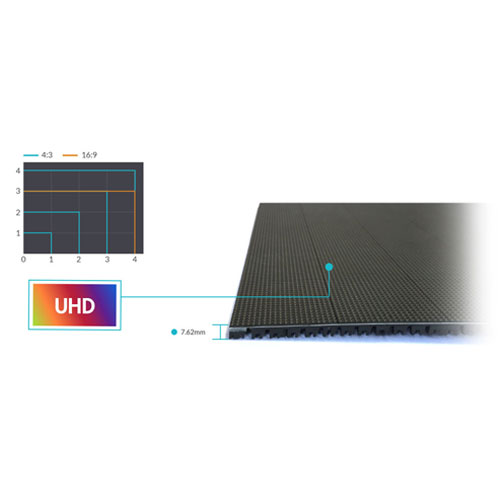

Ultra-high resolution & Super lightweight

Resolution is important for any display, but it is especially important for a flexible LED screen. The AmFlex Pro is the highest resolution flexible LED display on the market. Utilizing an ideal module size (400mm x 300mm) allows for both 16:9 and 4:3 video ratios. This high level of detail ensures that your content will look its best, no matter what it is.

Super lightweight The AmFlex Pro is one of the slimmest and lightest weight flexible LED screens on the market. Weighing in at only 1.51kg/3.32lb, it is practically invisible when installed. This makes it perfect for applications where a sleek, unobtrusive design is desired.

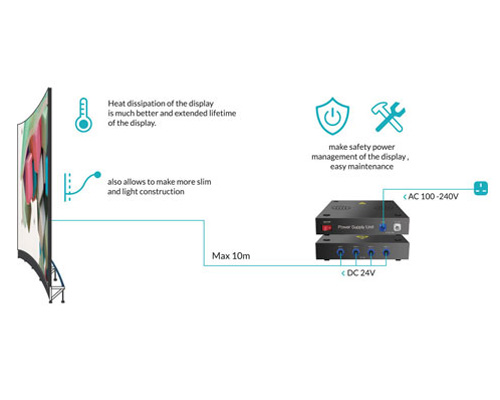

Independent Power Management

AmFlex Pro boasts an extended lifespan due to the display’s innovative heat dissipation. This also makes for easy maintenance of the display’s power management, making it completely safe in any environment. With its hot backup for the signal system, stable broadcasting is guaranteed when failure happens.

The AmFlex Pro also is designed with a slim and flexible natural curve (288X144mm) and allows for front access with magnet installation, providing for easy maintenance.

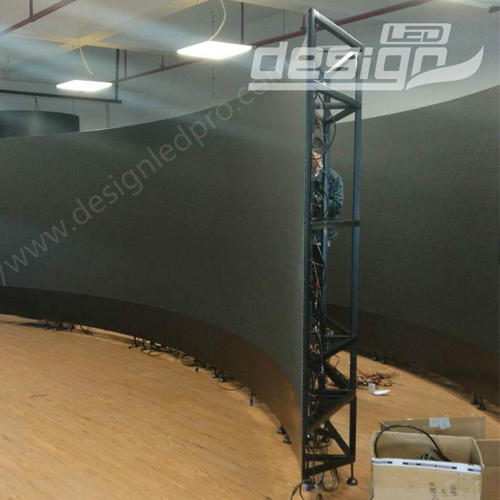

Customized LED Frame

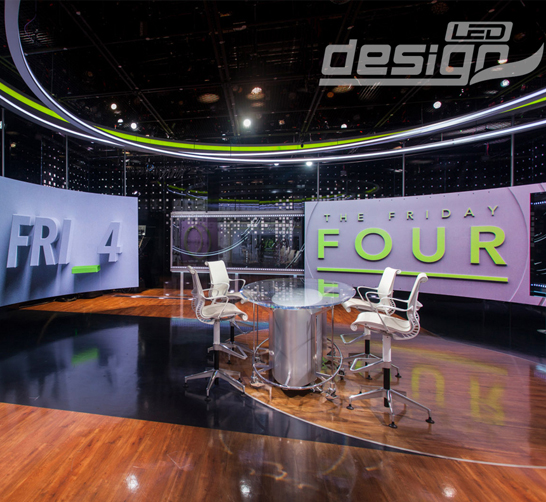

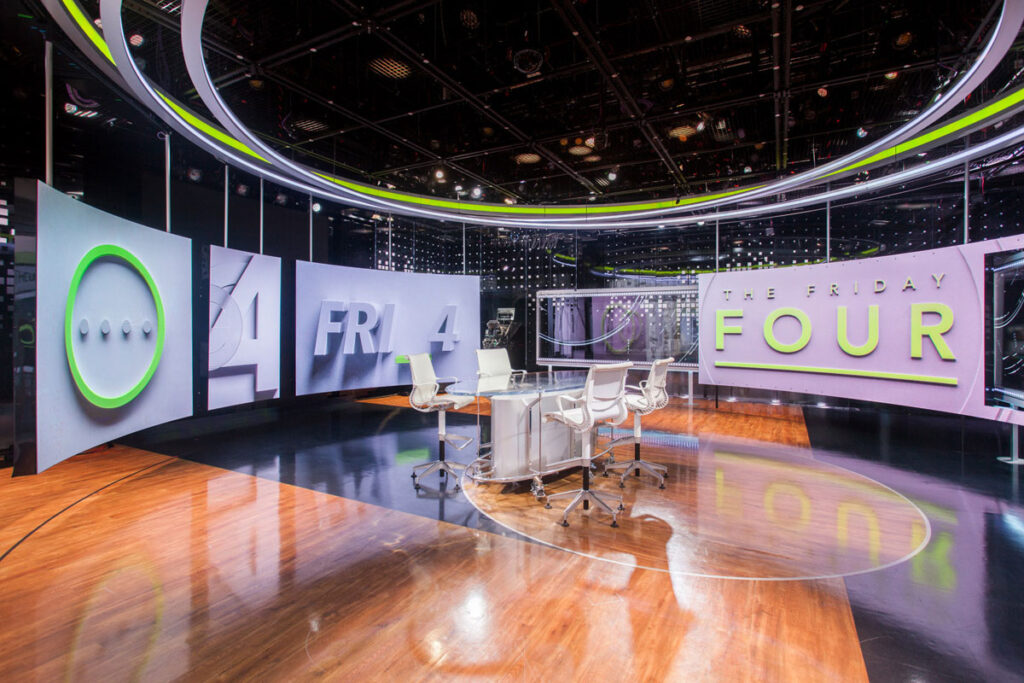

Different Applications

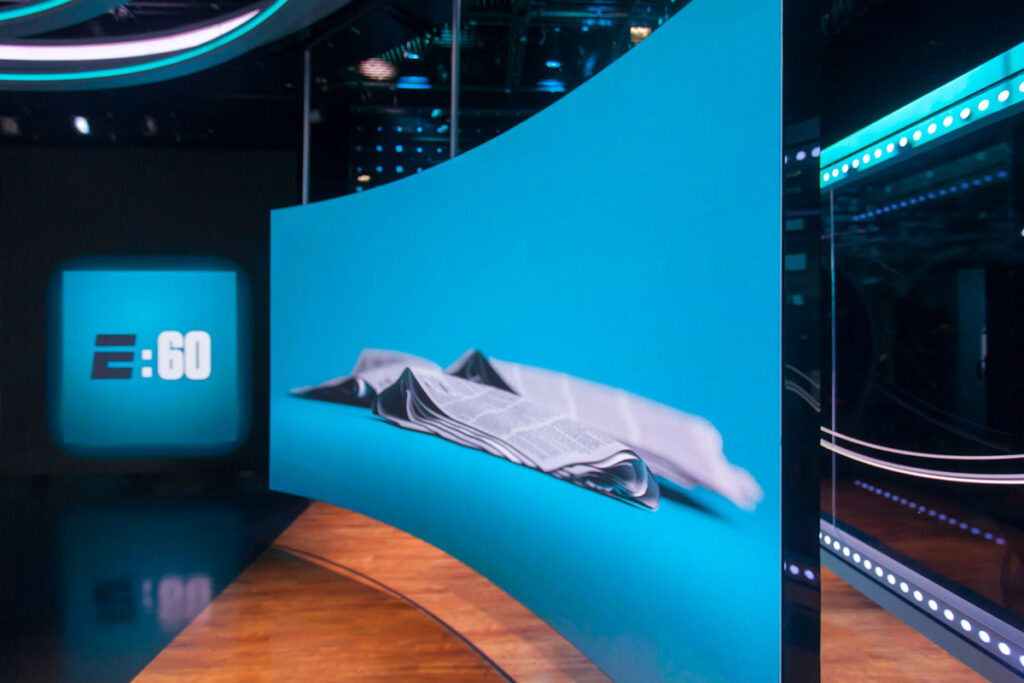

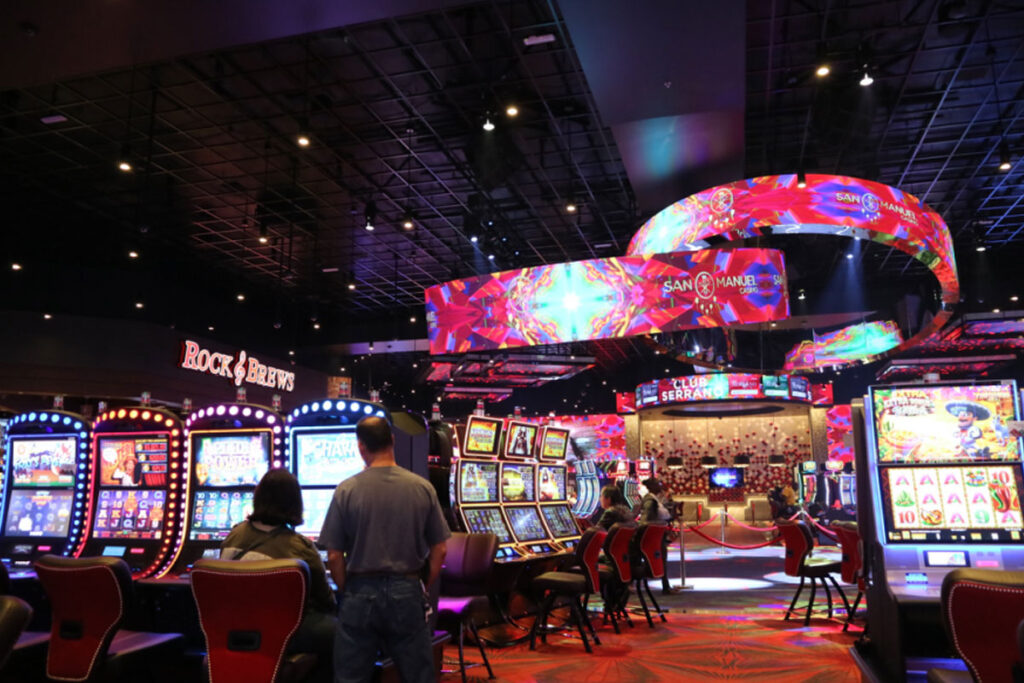

Our innovative concave, convex, wave shape, 360 degree and even twisting ribbon-liked screens enhance the viewing experience and draw in viewers from every angle. Endless possibilities AmFlex Pro can be installed in a variety of ways to create endless possibilities for your display.

Take a look at how Flexible LED tile will be.

AmflexPro LED System

Discover our ultra-thin 7.5mm flexible LED modules, weighing only 1.5kg per tile and featuring easy installation. With a LED module size of 15.75×11.81 inches (400x300mm), these LED displays save space, ensure centralized power management, provide safety and reliability, and deliver true-to-life colors for an exceptional viewing experience.

Specifications

Pixel pitch	mm	1.25mm	1.5625mm	1.667mm	1.923mm	2.5mm	3.125mm	4.1667	6.25mm
Resolution	dots	160*240	256*192	240*180	208*156	160*120	128*96	96*72	64*48
Pixels per sqm	dots	640000	409600	360000	270400	160000	102400	576600	25600
Tile size	mm	200x300x7.6	400x300x7.6	400x300x7.6	400x300x7.6	400x300x7.6	400x300x7.6	400x300x7.6	400x300x7.6
Brightness	nits	600~1200nits	600~2000its	600~2000its	600~2000its	600~2000its	600~3000its	600~3000its	600~3000its
Weight per tile	kg	0.5	1.5	1.5	1.5	1.5	0.5	0.5	0.5
Horizontal viewing angle	degree	160	160	160	160	160	160	160	160
Vertical viewing angle	degree	160	160	160	160	160	160	160	160
Contrast		5000 ：1	5000 ：1	5000 ：1	5000 ：1	5000 ：1	5000 ：1	5000 ：1	5000 ：1
Tile power consumption	W	30W	60W	60W	60W	60W	60W	60W	60W
AC input voltage	VAC	86~264	86~264	86~264	86~264	86~264	86~264s	86~264	86~264
Max Power	W/m²	650	650	650	650	650	650	650	650
Average power	W/m²	150	150	150	150	150	150	150	150
Maximum heat dissipation	BTU/HR/m²	3000	2500	2500	2500	2500	2040	2040	2040
Average heat dissipation	BTU/HR/m²	840	700	700	700	700	580	580	580
Gray level	bits	16bits	16bits	16bits	16bits	16bits	16bits	16bits	16bits
Refresh rate	Hz	1920/3840	1920/3840	1920/3840	1920/3840	1920/3840	1920/3840	1920/3840	1920/3840
Frame frequency	Hz	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120	59.94 ,60,120
Storage temperature	℃	40℃~60℃	40℃~60℃	40℃~60℃	40℃~60℃	40℃~60℃	40℃~60℃	40℃~60℃	40℃~60℃
Operating temperature	℃	-10℃~40℃	-10℃~40℃	-10℃~40℃	-10℃~40℃	-10℃~40℃	-10℃~40℃	-10℃~40℃	-10℃~40℃
Storage humidity	%RH	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Working humidity	%RH	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Protection level		IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30
LED lifespan (75% brightness)	Hrs	50000	50000	50000	50000	50000	50000	50000	50000
MTBF	Hrs	5000	5000	5000	5000	5000	10000	10000	10000
Certification		TUV-CE,ETL,FCC,MET,CCC
