The Venus MicroLED Display elevates your brand to the highest level by delivering breathtaking visuals
- +1 626-522 1069
The Venus MicroLED Display elevates your brand to the highest level by delivering breathtaking visuals

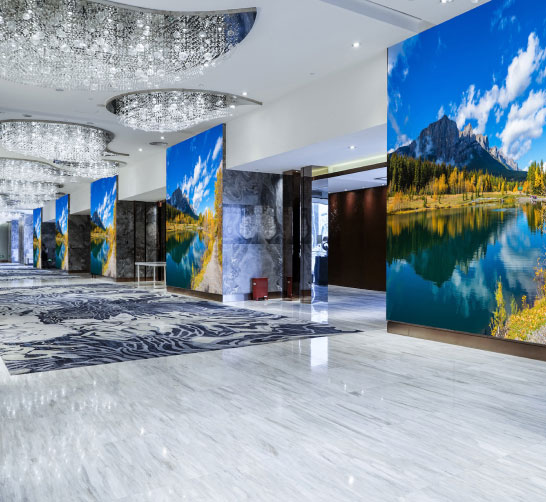

MicroLED Display Ultimate Visual Experience
The Ultimate Visual Experience
DesignLED’s technology for specialization, The Venus has a brightness.
Dynamic Technology for the next Generation of Displays
As the inventor of the flexible LED screen (in 2006), DesignLED has a long history of innovation and excellence. With 20-plus years of experience in LED applications and over two hundred creative LED screen installations worldwide, we are the undisputed leaders in our field.
Our products are engineered to the highest standards and are rigorously tested to ensure that they meet our exacting standards for quality and performance. We have delivered solutions for everything from broadcast television to public art installations, to Fortune 500 companies.
Perfectly Deep Black
Black is the essence of detail for led screens. With the fusion of an exceptionally black base
with specialized Black Seal Technology, The Venus
delivers deep black levels for intense contrast and
immaculate detail images.

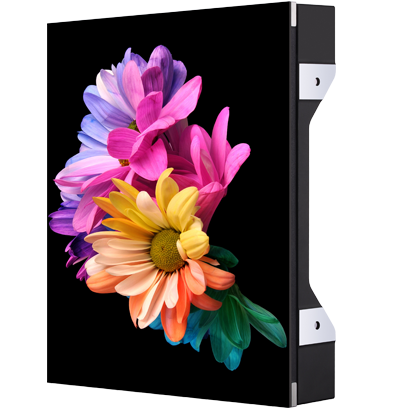

Ultrapure Color
Customers enjoy natural, true-to-life colors and life-like pictures with extra-wide color space. The Venus MicroLED technology possesses an inherent color quality with
superior color purity and a wider color gamut than any other conventional led display. The result is the authentic colors and rich details for an unparalleled visual experience.

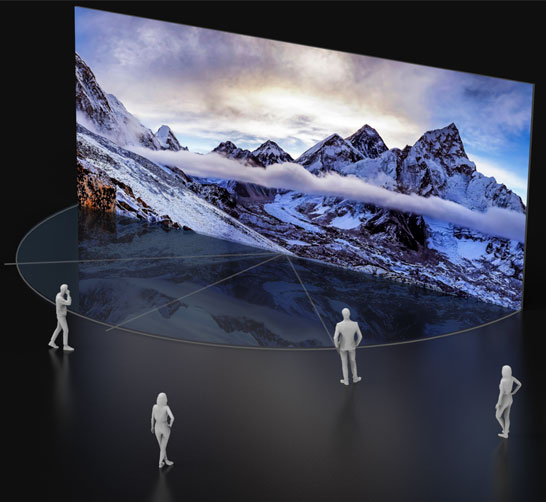

Wide Viewing Angle
With a wide viewing angle, the Venus
lets everyone see the full image, giving
a clear, uncompromised view for every
audience member, even with a color
shift or change in brightness.

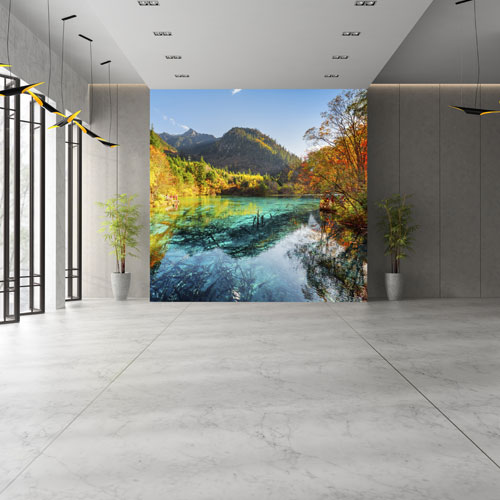

Outstanding brightness, Cool screen
Thanks to the DesignLED’s technology for specialization, The
Venus has a brightness max of 4000nits for Cool screen and
differentiate from any other led display solutions for high impact
visuals in any ambient lighting condition. It is the result of years of research and development.

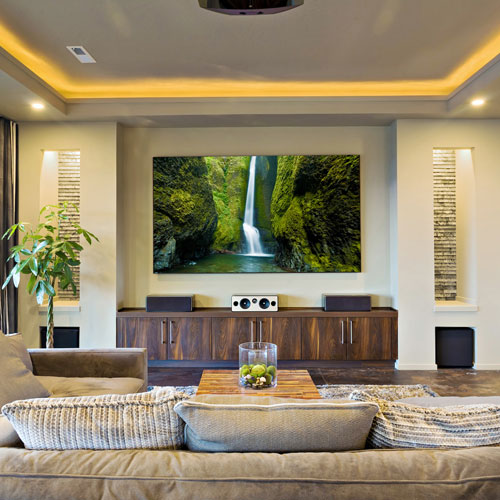

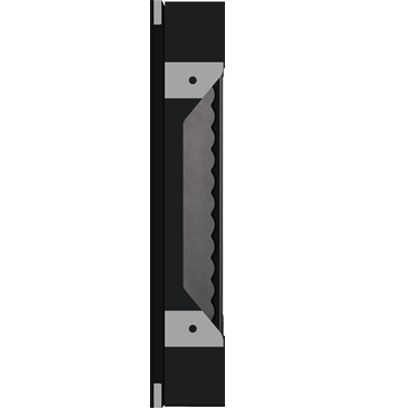

Infinity Design Installation
Experience infinity with a slim, bezel-less design that allows The Venus to seamlessly blend into its surroundings for endless possibilities. With its modern look, see only what you want to see. Hanging from the ceilings, curved walls or corner screens, any size , any shape you want.
Specifications
| No. | Paremeter | Specification | ||
|---|---|---|---|---|
| 1 | Pixel Pitch(mm) | 0.78125 | 0.9375 | 1.25 |
| 22 | Pixel/sqrm（dot/m²） | 1,638,400 | 1,137,778 | 640,000 |
| 5 | Bracket resolution | 384*432 | 320*360 | 240*270 |
| 8 | 4K Screen Size (m) | 135"/3mx1.6875m | 162"/3.6mx2.025m | 216"/4.8mx2.7m |
| 9 | Weight for 4K Screen (KG) | 177.00 | 153.24 | 272.42 |
| 10 | 2K Screen size (m） | 68''/1.5m x0.844m | 81''/1.8m x 1.01m | 108''/2.4m x 1.35m |
| 11 | Weight for 2K Screen (KG) | 45.00 | 65.00 | 115.00 |
| 12 | Max Consumption (W/m2) | 400 | 600 | 540 |
| 13 | Average Consumption (W/m2) | 153 | 229 | 206 |
| 14 | Brightness,Calibrated (nits) | 600~2000 | ||
| 15 | Contrast Ratio | 12,500:1 | ||
| 16 | Bit depth | 15 bits | ||
| 17 | Color Space | ≥105% NTSC | ||
| 18 | Color temperature | 3200~9300K | ||
| 19 | H/V Viewing angle | ＞170° | ||
| 20 | Refresh Rate | 1920~3840Hz | ||
| 21 | Frame Rate | 50/60Hz, 120Hz | ||
| 22 | Frame Material | Die Cast Aluminum | ||
| 23 | Bracket size(mm) | 11.81" * 13.29", 300mm*337.5mm | ||
| 24 | Diagonal (inch & mm) | 18", 451.56mm | ||
| 25 | IP Grade | Front IP65, Rear IP30 | ||
| 26 | Working temperature | ﹣10℃ ~ +40℃ | ||
| 27 | Certificates | FCC, CE, ETL, RoHs | ||
| The specification is subject to change without prior notice | ||||
| Item | Unit | v0.6 | v0.7 | v0.9 | v1.2 |
|---|---|---|---|---|---|
| Pixel Pitch | mm | 0.625 | 0.78125 | 0.9375 | 1.25 |
| Resolution | pixal/sqm | 2,560,000 | 1,638,400 | 1,137,778 | 640,000 |
| Cabinet Resolution | pixal | 480x540 | 384x432 | 320x360 | 240x270 |
| Tile Size | mm(inch) | ||||
| Cabinet Size | mm(inch) | ||||
| Cabinet Weight | kg/lb | 4kg/8.2lb | 4kg/8.2lb | 4kg/8.2lb | 4kg/8.2lb |
| Pixel Calibration | |||||
| Brightness | nits | 600nits | 600~2000nits | 600~2000nits | 600~2000nits |
| Consumption | W/sqm |
Applications
Healthy
Retail
Control Room
Corporate
